Holley sniper in tank fuel pump install work starts as a shop pre-check, not a hole-saw race: depressurize and isolate power, plan the tank seal and float clocking, size the relay feed and battery-direct ground, then lock return vs returnless plumbing before you cut metal or drop the module.
This page stays on those gates for Holley Sniper EFI and Sniper-adjacent EFI builds. Architecture comparison, symptom trees, and LPH sizing live on sibling guides.

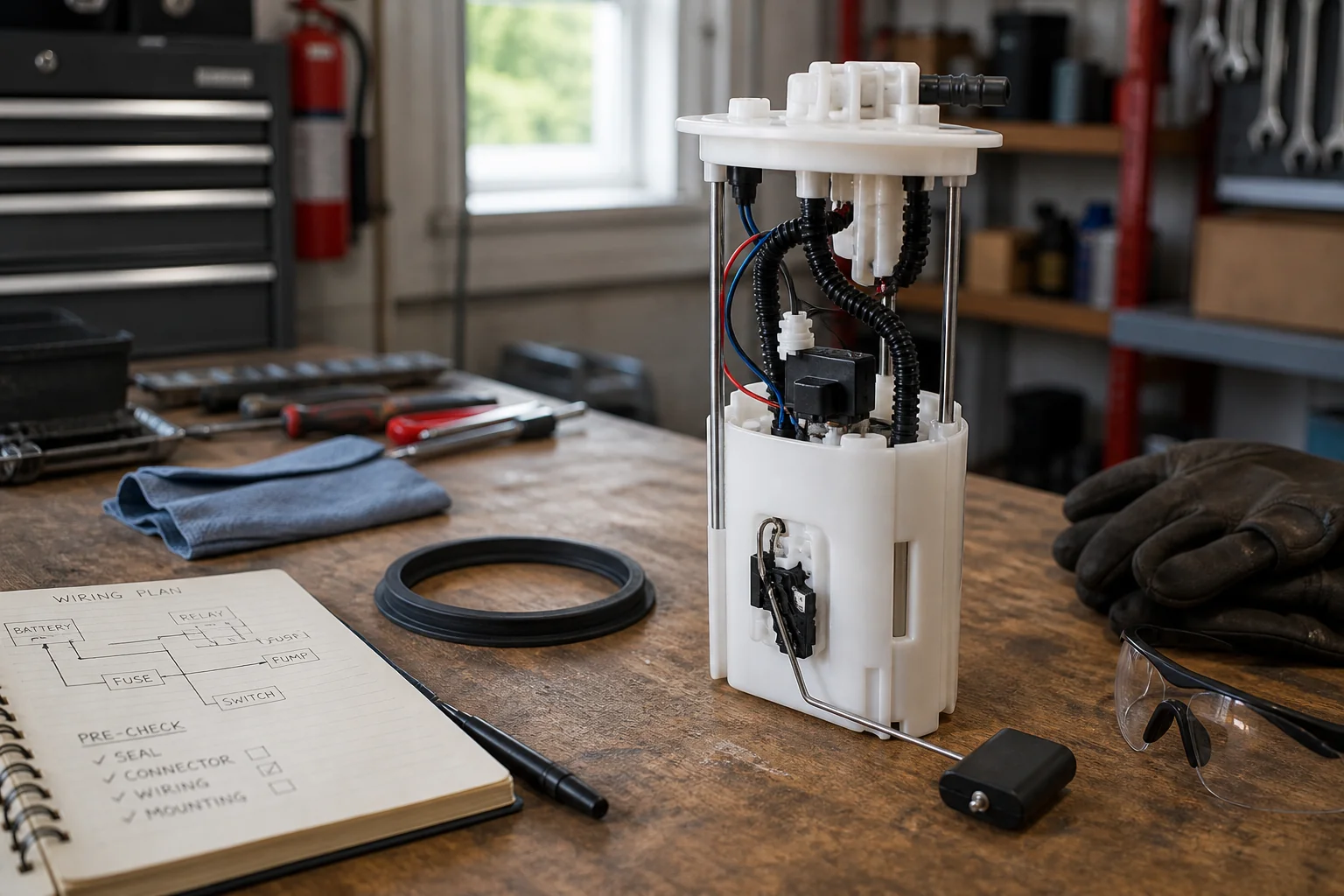

Shop cover for a Sniper-intent in-tank install pre-check: module, seal, and wiring cues before any tank cut.
Jump to the pre-check gate you need next.
- What a Sniper-Intent In-Tank Install Actually Requires
- Safety Pre-Check: Depressurize, Fire, and Battery Isolation
- Tank Prep: Clearance, Depth Trim, and Seal Plan
- Float, Module Clocking, and Seal Seat
- Electrical Pre-Check: Relay, Fuse, Wire Gauge, and Battery Ground
- Return vs Returnless and Pulsation Checks
- Post-Install Checks: Prime, Leak, and Delivery
- After Pre-Checks: Browse Fitment-First Electric and In-Tank Assemblies
- FAQ
- References.
What a Sniper-Intent In-Tank Install Actually Requires
Sniper-class EFI expects a high-pressure electric In-tank fuel pump in roughly the 60 psi class, and manufacturer instructions often prefer submerged mounts for quieter running, less cavitation, and cooler pump temperatures.
An in tank fuel pump install for this intent means getting the Fuel pump module / hanger, pickup media, and tank-top seal right—not copying a kit title into a wholesale PO. Holley Sniper EFI documentation frames the pressure and mount preference; it does not authorize Kangsong SKUs as Sniper kit clones.
If the pump must sit outside the tank, treat External / inline pump placement as a low, near-tank push-feed layout and protect injectors with a Post-filter (10 µm class) on the supply path. Mount architecture trade-offs are covered in the external fuel pump vs internal guide; keep this page on install pre-checks.
Flow and LPH math belong in what size electric fuel pump do I need. Here the job is how to install in tank fuel pump hardware safely once the pressure class is already known.

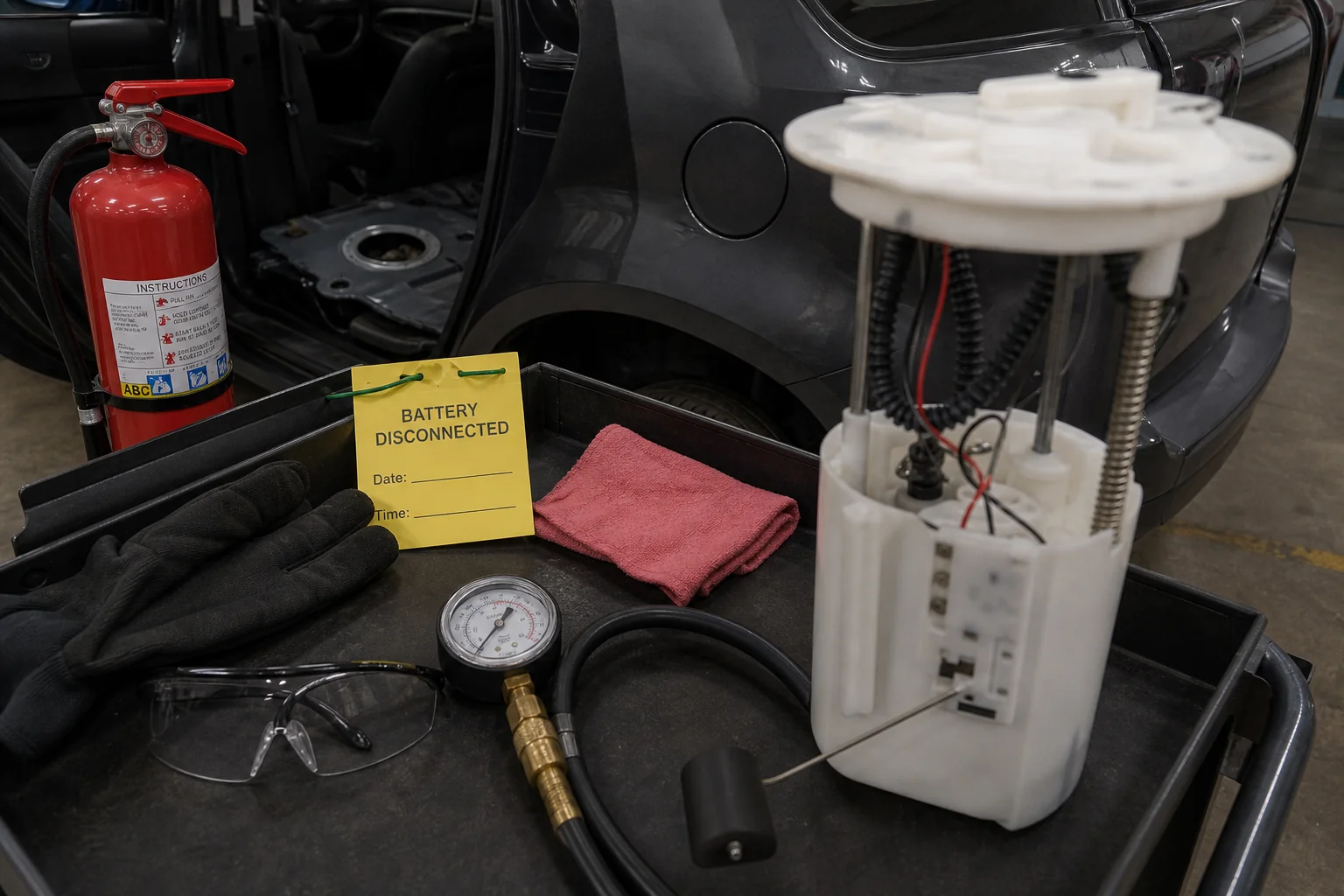

Safety Pre-Check: Depressurize, Fire, and Battery Isolation
Depressurization comes first: isolate in-tank pump power at the fuse or relay, bleed residual line pressure, relieve tank vapor at the cap, then disconnect the battery negative before you open lines or the module.
Gasoline vapor ignites from sparks and hot work. Keep ignition sources away, ventilate the bay, and stage a Class B extinguisher when you crack pressurized fuel systems.
Practical shop tips match the same pattern—unplug the fuel-pump relay and crank to bleed, then use non-sparking tools on lock rings when the tank is open.
Important: Before opening fuel lines or modules, isolate pump power, bleed residual pressure, relieve tank vapor, and disconnect the battery negative — keep ignition sources away (NHTSA recall technical instructions).
Tank Prep: Clearance, Depth Trim, and Seal Plan
Retrofit hangers need a clear flat tank zone, measured depth trim, and a sealed clamp or gasket interface before anyone swings a hole saw.
Manufacturer retrofit kits publish their own hole diameter, depth band, and stack height. Treat those figures as kit instructions, not as Kangsong dimensions and not as a universal tank template.
Mark sender clearance, baffle edges, and HydraMat / strainer sock orientation before you cut. A rushed hole that clips a baffle or sender path turns a quiet in-tank plan into a float fight and a leak path.
| Pre-install gate | Pass condition | Fail signal |
|---|---|---|
| Depressurization | Pump fuse/relay isolated; residual pressure bled; tank vapor relieved | Lines still spit fuel when cracked |
| Battery isolation | Negative terminal disconnected before fuel work | Sparks risk near open vapor |
| Tank flat zone | Clear area away from baffles and sender travel | Hole lands on structure or sender path |
| Depth / trim plan | Kit depth measured and hanger trim planned | Guessed cut depth or dry-run risk |
| New tank seal / O-ring / gasket | Fresh seal staged; mating surface clean | Reused crushed O-ring on the bench |
| Float / Fuel level sender / float clearance | Clocking marks noted; float arm protected | Bent arm or wall-contact risk |
Float, Module Clocking, and Seal Seat
Clock the module to the tank marks, protect the float arm, and seat a new seal without crushing the lock ring.
Service sheets call for a NEW rubber O-ring, indexing arrows that match the removed unit, and rotation so the float clears the tank wall. Delphi-style education adds the same rule: do not bend the level-sender float arm, and do not overtighten the retaining ring until it leaks.
Conversion-tank instructions also warn about float SIDE markings and wire pass-through fittings that leak when overtightened. If the hanger carries a HydraMat / strainer sock, follow the kit’s long-end-first and clocking notes instead of improvising a sock angle.

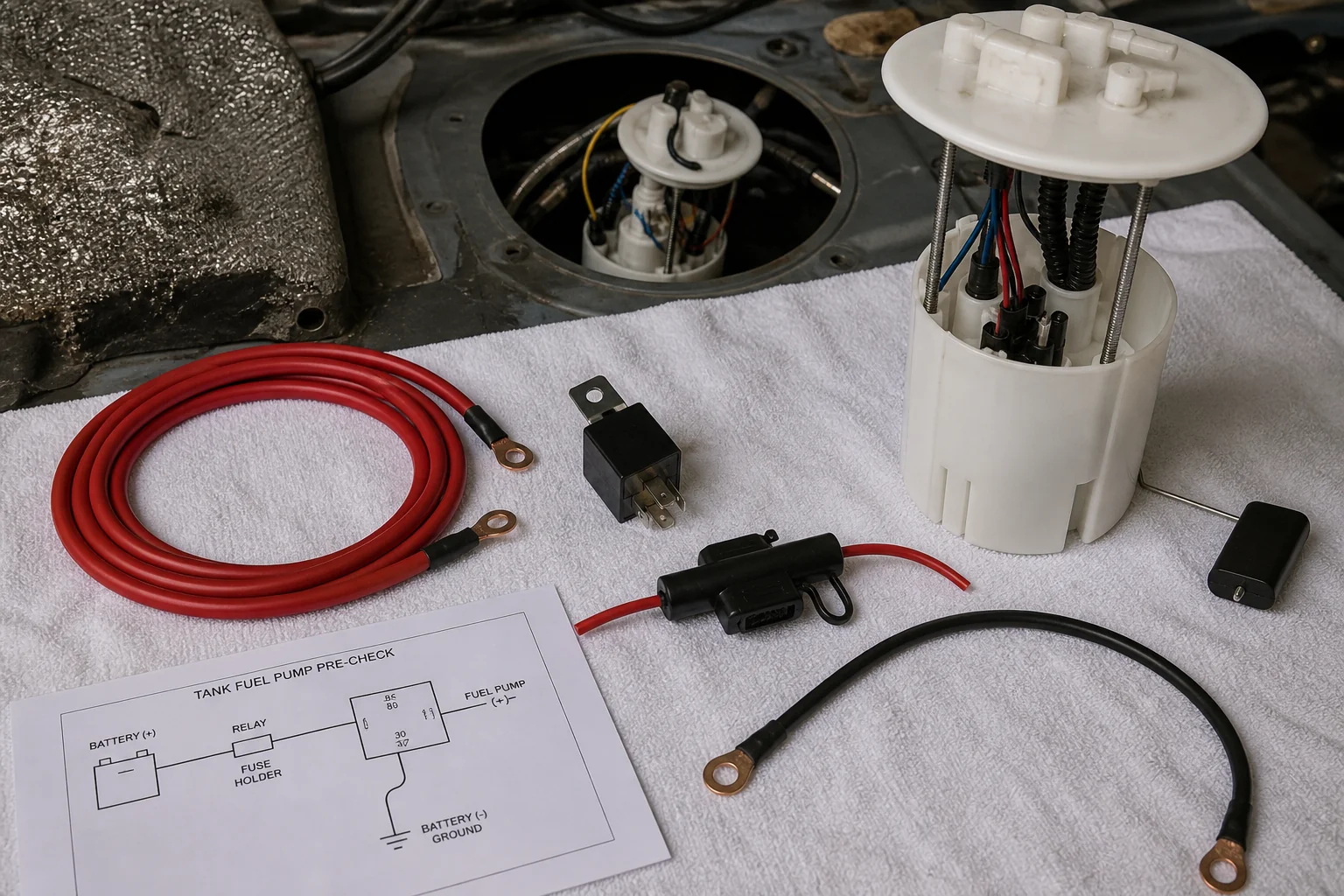

Electrical Pre-Check: Relay, Fuse, Wire Gauge, and Battery Ground
Sniper EFI fuel pump wiring needs a fused relay feed, heavy pump conductors, and a clean battery-direct ground—not a thin trigger wire doing the whole job.
Holley-style hanger sheets warn to use a minimum of 12 gauge wire and a 20A fuse between the battery and the relay harness, because undersize wiring risks pump malfunction and electrical fire. Size the Fuel pump relay + fuse path for continuous pump current with headroom; keep coil triggers on the low-current side.
From the field: Installers report that the existing ground at the fuel sender is not good enough—run the fuel pump ground wire straight to the battery and do not deviate from the wiring instructions when grounds are specified (CorvetteForum Sniper in-tank thread).
Route pump power away from noisy ignition leads when packaging is tight. Voltage drop and EMI complaints after a clean mechanical install almost always trace back to grounds and gauge, not to the pump impeller alone.
| Electrical / plumbing decision | Prefer | Watch-out |
|---|---|---|
| Pump feed conductor | Minimum heavy gauge per kit (often 12 gauge class) | Thin speaker-wire feeds and voltage sag |
| Protection | Fused battery-to-relay path sized for the pump | Unfused battery taps |
| Switching | Dedicated Fuel pump relay + fuse path | ECU pin carrying full pump current |
| Ground | Battery-direct pump ground | Sender chassis ground only |
| Return line vs returnless | Return preferred when pulsation risk is high | Returnless pulsation / lean tip-in |
| Pump oversize on returnless | Match flow to demand | Constant bypass heat in the tank |
Return vs Returnless and Pulsation Checks
Return line vs returnless plumbing is a separate gate from “will the pump bolt in.” A full return path sends unused fuel back to the tank; returnless layouts regulate locally and can show supply-hose pulsation on Sniper-adjacent installs.
Community threads describe quiet in-tank pumps that still pulse the hose, lean out on tip-in, or stall until a damper is added. Oversized pumps on light engines can constantly bypass and heat tank fuel on returnless systems.
If the kit or tank is returnless, plan damper hardware or reconsider a return before you call the pump bad. If the kit wants a return, do not delete the return “to simplify” the install.
Regulator questions from PAA (“does Sniper need a fuel pressure regulator?”) land here: some Sniper setups regulate onboard; others still need correct return or returnless hardware that matches the pump’s continuous high-pressure delivery.
Post-Install Checks: Prime, Leak, and Delivery
After the module is locked, reconnect power only after tools are clear, then key-on prime, start, and inspect every seal and fitting for leaks.
Listen for the brief prime hum, confirm rail or regulator behavior against the EFI system’s expected pressure class, and re-check grounds if the pump sounds strained. Chase pulsation, lean tip-in, and EMI before you condemn a new in-tank unit.
Noise or delivery complaints after a clean install may be symptoms rather than install gates—use in-tank fuel pump symptoms for that tree instead of restarting the hole-cut.
After Pre-Checks: Browse Fitment-First Electric and In-Tank Assemblies
After the safety, seal, orientation, electrical, and plumbing gates pass, browse a Kangsong fuel pump assembly catalog by vehicle application—not by Holley Sniper kit part numbers.
Kangsong lists electric and in-tank-style assemblies for fitment-first sourcing on the products-root catalog. That hub is navigation for electric / in-tank hardware after pre-checks; it is not a Holley Sniper retrofit catalog and does not prove Sniper equivalence.
Match years, engines, and OE references on the SKU you actually need. If you still need architecture, symptoms, or LPH sizing, jump to the sibling articles linked above rather than forcing this install page to answer those intents.
FAQ
What type of fuel pump does a Holley Sniper EFI system need?
A high-pressure electric pump in roughly the 60 psi class. Manufacturer guidance often prefers an in-tank mount for noise, heat, and cavitation control; confirm the exact kit pressure and filtration rules before you buy.
How do you safely prepare before an in-tank fuel pump install?
Isolate pump power at the fuse or relay, bleed residual pressure, relieve tank vapor, disconnect the battery negative, ventilate the bay, and keep sparks away before you open the tank or lines.
How should you wire an in-tank fuel pump for Sniper-class EFI?
Use a fused relay feed, heavy pump conductors (kit sheets often call out a 12 gauge minimum), and a battery-direct ground. Do not hang the pump ground on the old sender chassis wire alone.
Does a Sniper install need a fuel pressure regulator or a return line?
It depends on whether the system is return-style or returnless. Some Sniper setups regulate onboard; returnless installs still need hardware that holds pressure without pulsation, and many shops prefer a true return when packaging allows.
Can an in-tank fuel pump or hanger be mounted in any orientation?
No. Follow tank indexing marks, protect the float arm, and keep float travel clear of the tank wall. Upside-down or random clocking invites sender errors and seal leaks.
What are common problems after a Holley Sniper in-tank pump install?
Weak grounds, thin wiring, crushed seals, bent floats, returnless pulsation, and lean tip-in show up repeatedly in shop threads. Confirm prime, leak-check, and electrical integrity before swapping pumps again.
How is “in tank fuel pump install” different from choosing pump size?
Install pre-checks cover safety, orientation, seals, wiring, and plumbing. Pump size and LPH selection are a different decision—use the sizing sibling when flow is still open.
Does Kangsong sell a Holley Sniper-compatible in-tank pump?
No verified Kangsong listing claims Holley Sniper compatibility or replacement. After pre-checks, browse electric and in-tank assemblies by vehicle fitment on the products-root catalog instead of hunting for a Sniper clone.
