A fuel pump hanger purchase line may name an OE-style hanger assembly, an in-tank module/bucket unit, a bare pump element, or a sending-unit sister — and this catalog does not print a hanger-named SKU. The same ticket words can still point at different cartons, so the first job is to name the object before anyone quotes a pump box. KS-360501 stays a printed 1987-1995 C/K complete assembly after a pump-side match, never a hanger cure-all.
Match the purchase line to the physical hanger object
The line may name a hanger assembly, a module/bucket unit, a bare pump, or a sending-unit sister — not one universal hanger SKU. A counter who hears “hanger” and ships the nearest motor has skipped that fork.
A hanger assembly is a unit with the fuel pump but without a float. The float rides on a sender assembly that also carries the hanger and the pump.
A fuel module puts the pump inside a reservoir. Many modules are not sold as a bare motor that drops into the old hat.
| Ticket reading | What the words may name | What the counter must match | What not to invent |
|---|---|---|---|
| Hanger assembly | Pump-bearing hanger without the gauge float | Sheet already prints hanger assembly / pump, no float | A hanger-only Kangsong carton |
| Module / bucket | Reservoir-integrated in-tank unit | Sheet already prints module, bucket, or reservoir | Treating bucket as a synonym for a bare pump |
| Bare fuel pump | Motor/element carton; old hanger stays in the tank | Sheet already prints pump only / element | Shipping a bare motor when the ticket meant the hanger |
| Sender sister | Hanger + pump + float on one carton | Soft-open the sending-unit page | Retelling that page here |
| Not on this sheet | Hanger-named job with no printed carton here | Category browse; refuse a fake hanger SKU | KS-360501 as a hanger cure-all |
Field buyers also treat “fuel pump hanger” as a fit-critical mount and sometimes confuse it with the entire in-tank assembly. Write the object in the same ink as the year and the tank before any carton moves.

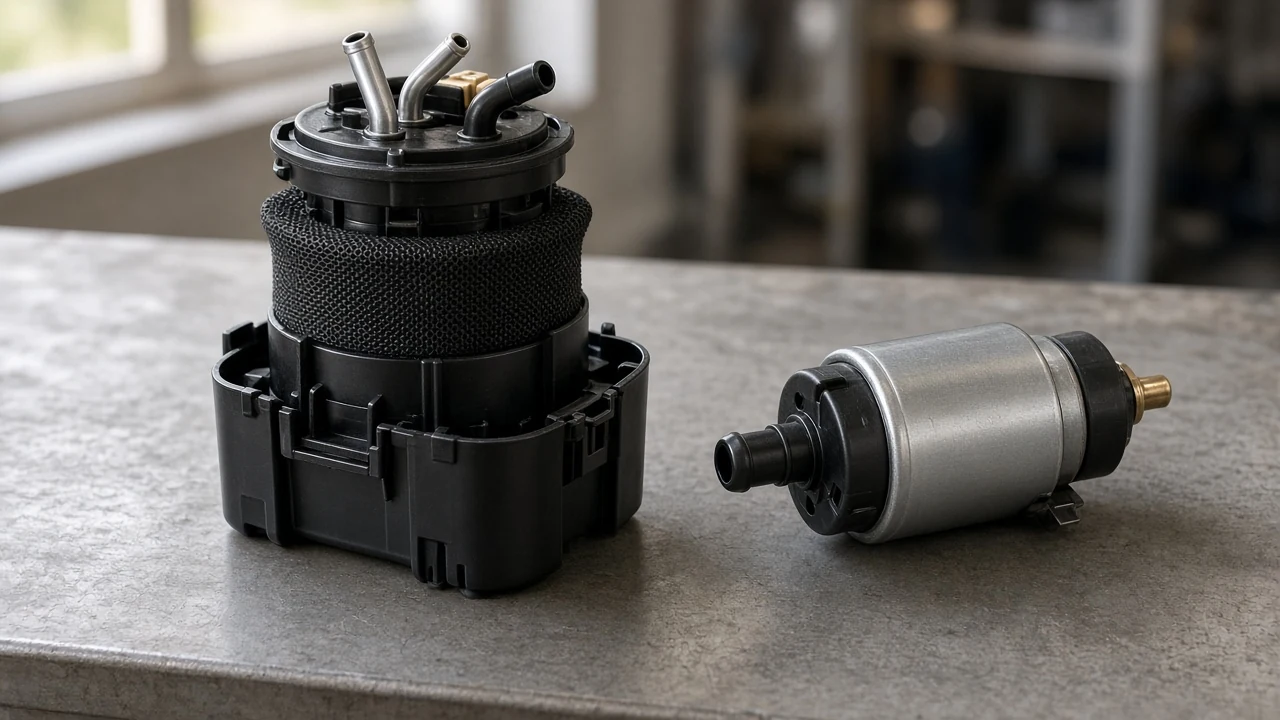

Separate hanger assembly language from module and bucket cartons
Module and bucket language often means a reservoir-integrated carton; it is not automatically the same as a bare hanger hat or a pump-only box. OE aftermarket sheets group modules and hanger/sender assemblies as fuel-delivery families that may include level sensing.
A ticket that says hanger while the bay says bucket is still one purchase line. The carton either surrounds the pump with a reservoir or it does not.
From the field: On LS1Tech, a reply says an OEM-style replacement can include the bucket, while an aftermarket pump carton can omit it. https://ls1tech.com/forums/lt1-lt4-modifications/1856377-fuel-pump-replacement-procedure.html
Read that fork as order language. Do not read it as a tank-drop or cutting guide.

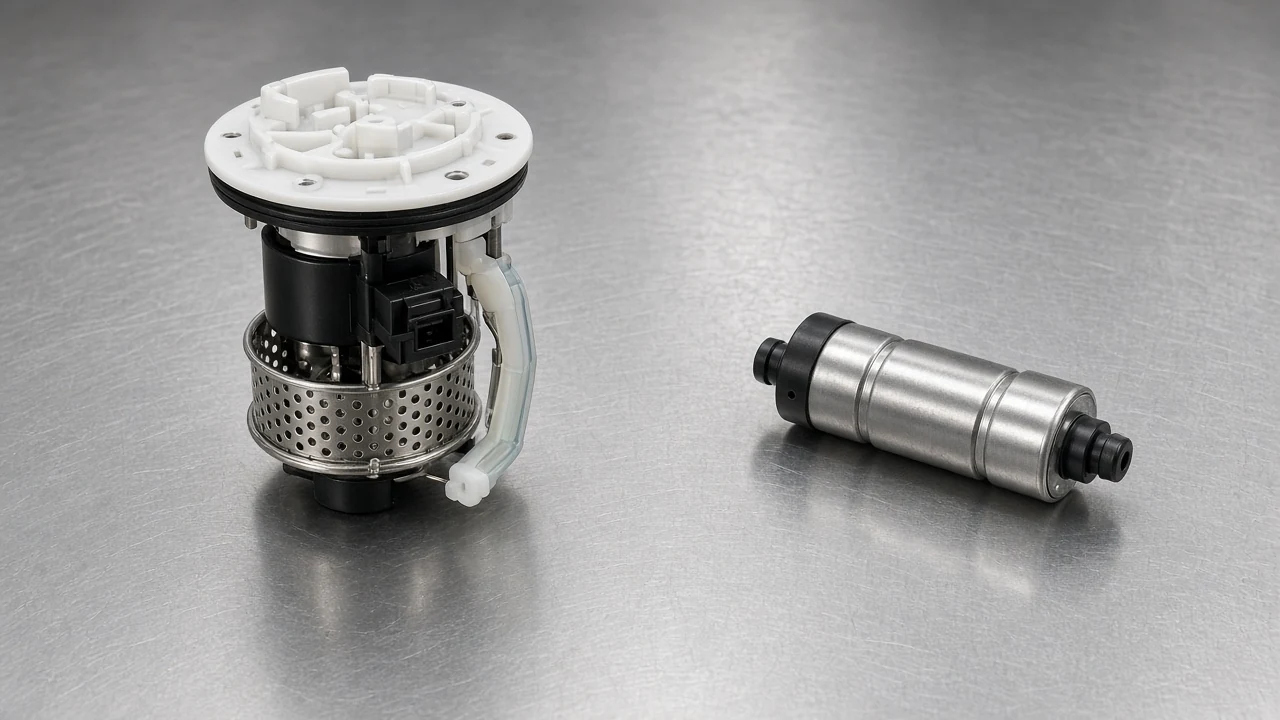

A bare pump carton leaves the hanger in the tank
Ordering the motor alone leaves the old hanger or bucket behind unless the ticket also names that object. Independent technical notes say the electric pump is usually part of a sending-unit assembly and can be bought as a separate item or as a complete module.
That choice is honest when the sheet says the old hanger stays. It is the wrong carton when the line already asked for the hanger, the module, or the bucket.
Write “pump only” or “hanger included” as words on the order. Price alone does not name the object.
Keep the old hanger only when someone has already decided it is sound. Cracks, a broken foot, or a connector that no longer clips still belong on the sheet as reasons to stop reusing it.
Soft-link assembly, sending unit, strainer, and gasket sisters
Sender, strainer, gasket, and assembly-versus-pump pages already own those lines — soft-link them instead of retelling. In-tank pumps are often part of an assembly with a fuel pump strainer and a fuel level sensor.
A sender assembly / sending unit includes the hanger, the pump, and the float. That is a sister carton, not a second name for a hanger-only hat.
Use fuel pump sending unit when the sheet is about the gauge side. Use fuel pump strainer for the inlet screen and fuel pump gasket for the tank-opening seal. The fuel pump assembly primer and assembly versus pump split stay on their own pages, as does electric fuel pump assembly.
This page stays on the hanger naming fork.
Performance hangers still prove pumps can ship separately
Aftermarket hangers can replace a factory module and list pumps separately; that contrast is not a Kangsong hanger SKU and not a brand-sheet ranking. An aftermarket performance hanger on shopping rows often holds one or more pumps that ship as their own cartons.
That SERP pattern still helps a counter. It proves the hanger object and the bare pump object can move on different lines.
Do not clone those shopping kits into this catalog. Unprinted hanger jobs stay on category browse, not on an invented hanger SKU.
This catalog prints no hanger-named product

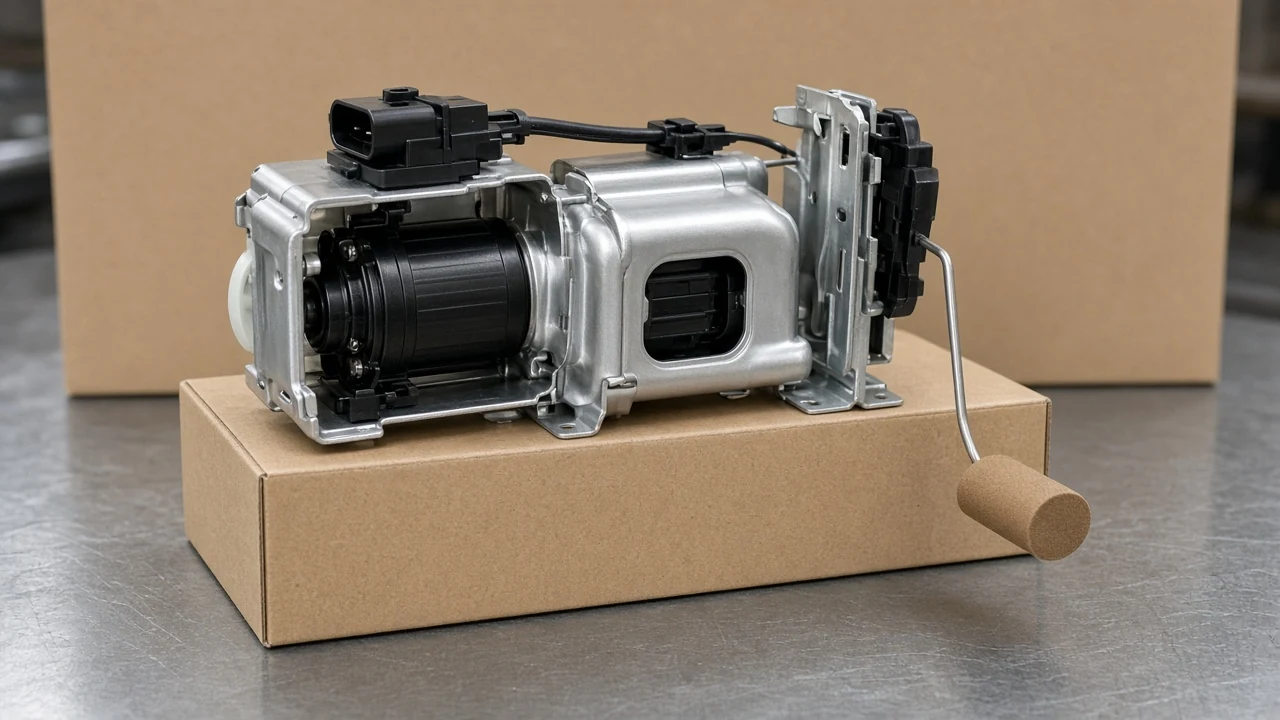

WooCommerce search for hanger returns empty; inventing a hanger-only Kangsong carton is out of scope. The printed sheet that does carry housing, sender, and pump together is a complete assembly window, not a hanger bottle.
When the ticket needs a hanger-named object this sheet does not print, stay on products-root without inventing a part number.
Select KS-360501 only after pump-side C/K fit; browse products-root for unprinted hanger jobs
Unprinted hanger jobs stay on category browse; open KS-360501 only when the ticket is pump-side plus the printed 1987-1995 C/K window — never as a hanger cure-all. The 1987-1995 C/K electric gasoline pump assembly is that window.

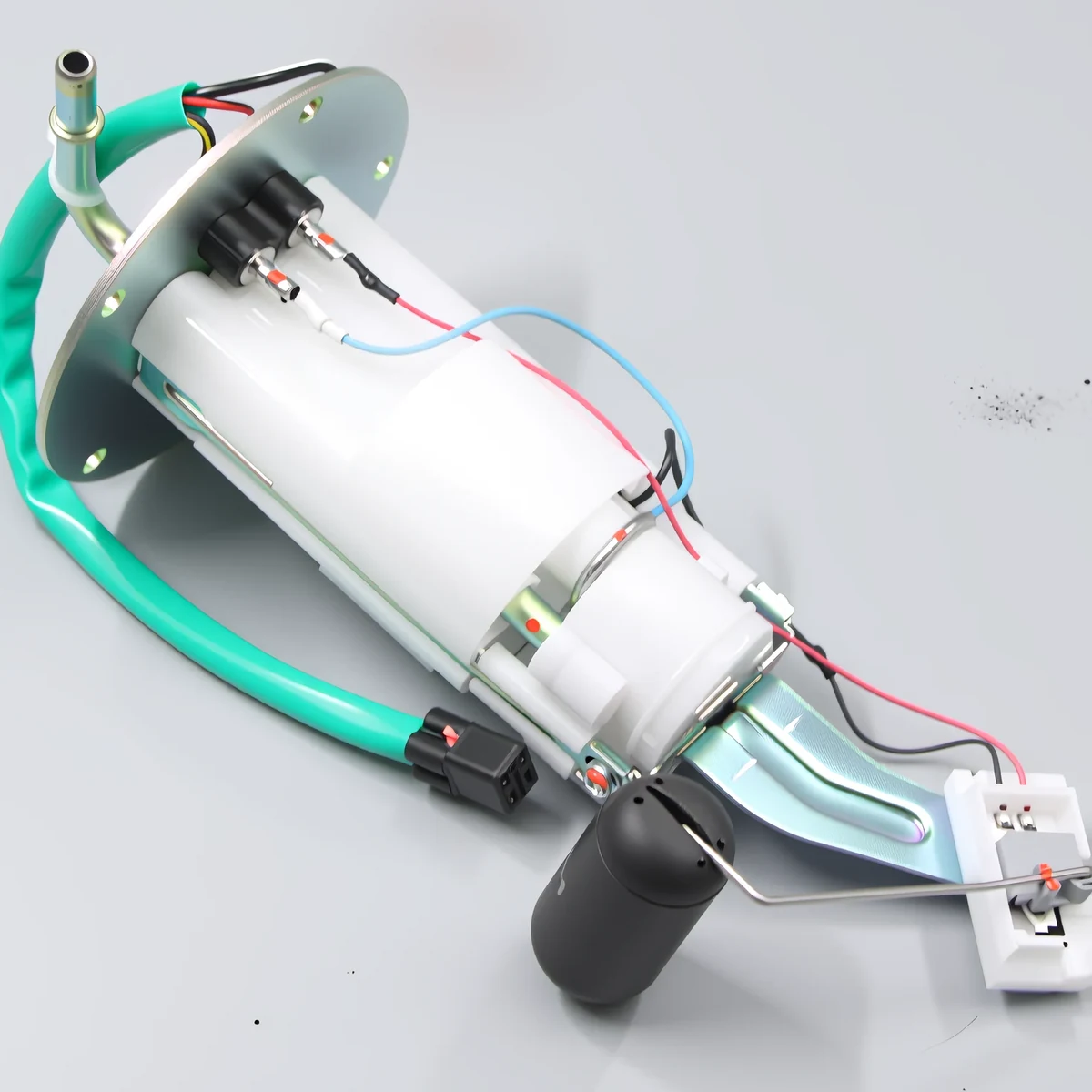

KS-360501 is a complete assembly including the fuel pump, sending unit, and housing for 1987-1995 C/K 1500 / 2500 / 3500, with OE crosses including 25168719 / E3902. Kit labels on that page read DC 12V, a 2-pin main connector, and 43.3-49.5 Gph.
The air label Maximum Air Pressure 12-26 is an air number only. It is not a hanger size or depth.
| Printed label | What KS-360501 prints | Hanger-job misread to refuse |
|---|---|---|
| Vehicle window | 1987-1995 C/K 1500 / 2500 / 3500 | Any hanger line outside that truck window |
| OE crosses | 25168719 / E3902 and listed crosses | Using those crosses as a universal hanger key |
| Electrical | DC 12V, 2Pins | Treating pins as hanger geometry |
| Flow label | 43.3-49.5 Gph | Treating flow as a hanger depth |
| Air label | Maximum Air Pressure 12-26 | Reading 12-26 as hanger size or depth |
| Overview | Fuel pump + sending unit + housing | Ordering it as a hanger-only carton |
If the ticket is that C/K pump-side assembly, open the product above. If the ticket needs a hanger-named object this catalog does not print, stay on products-root.
FAQ
Is a fuel pump hanger the same carton as a bare fuel pump?
No. A hanger line may mean the mount, module, or assembly that holds the pump. A bare pump leaves that hanger in the tank unless the sheet also names it.
What is the difference between a hanger assembly and a fuel pump module?
A hanger assembly carries the pump without a float. A fuel pump module integrates the pump into a reservoir, and many modules are not sold as a bare motor.
Does a hanger assembly include the fuel level sending unit?
No. The sender assembly is the sister carton that adds the float to the hanger and pump. Soft-open the sending-unit page when the sheet is about the gauge.
Why do threads say bucket when the ticket says hanger?
Field language often means the reservoir around the pump. An OEM-style carton can include that bucket while a pump-only carton omits it, so the order still has to name which object ships.
Can KS-360501 be ordered as a universal fuel pump hanger?
No. KS-360501 is only the printed 1987-1995 C/K complete assembly after a pump-side match. It is not a hanger-only SKU and not a hanger cure-all.
When should the counter soft-open sending unit, strainer, or gasket instead?
Open those sisters when the sheet is about the float gauge, the inlet screen, or the tank-opening seal. Keep this page on the hanger naming fork.
What should the order say when this catalog prints no hanger SKU?
Name the object the bay actually needs — hanger assembly, module/bucket, bare pump, or sender sister — then browse products-root for unprinted hanger jobs instead of inventing a Kangsong hanger part number.
Is the Maximum Air Pressure 12-26 label on KS-360501 hanger size or depth?
No. Maximum Air Pressure 12-26 is an air label on that C/K assembly only. It does not measure hanger height, depth, or flange size.
