For most passenger diesels, the diesel fuel pump nozzle size you need is the auto-diesel spout class around 15/16 in (23.8 mm) outside diameter—larger than gasoline’s ~13/16 in (20.6 mm)—so misfuel guards unlock while gasoline restrictors stay protected. Truck high-flow tips are larger still and usually do not belong on passenger fillers. This page locks fuel pump nozzle sizes by spout OD class, guard unlock, auto diesel vs truck diesel nozzle lanes, and label-over-color checks—then hands off to verified Kangsong electric fuel pump assemblies only after fuel integrity is clear.
What “Diesel Fuel Pump Nozzle Size” Means (Dispenser Spout vs Injector vs HPFP)
This guide means the fuel-dispenser spout outside diameter at the pump island—not diesel injector orifice charts and not an HPFP failure-symptoms checklist.

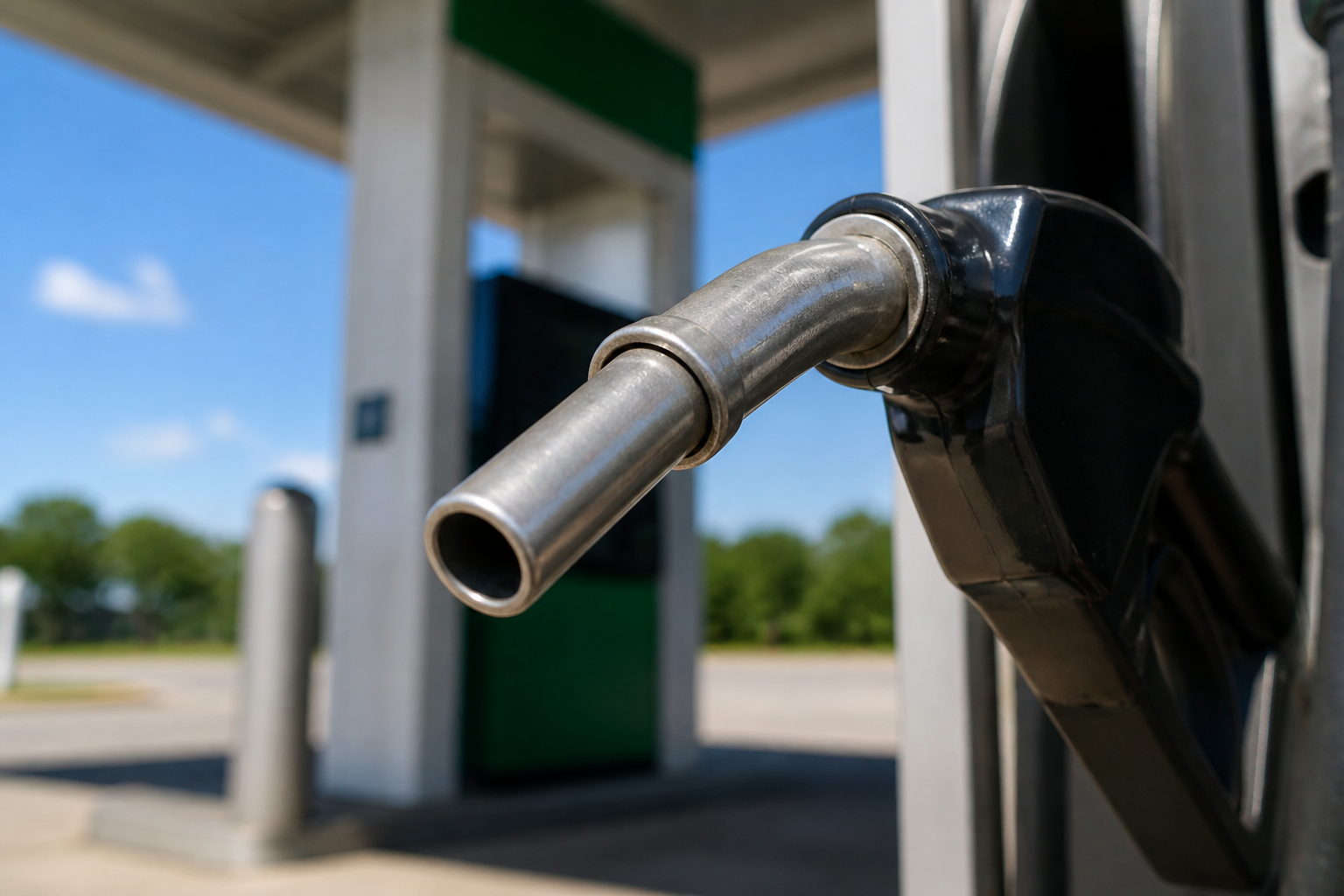

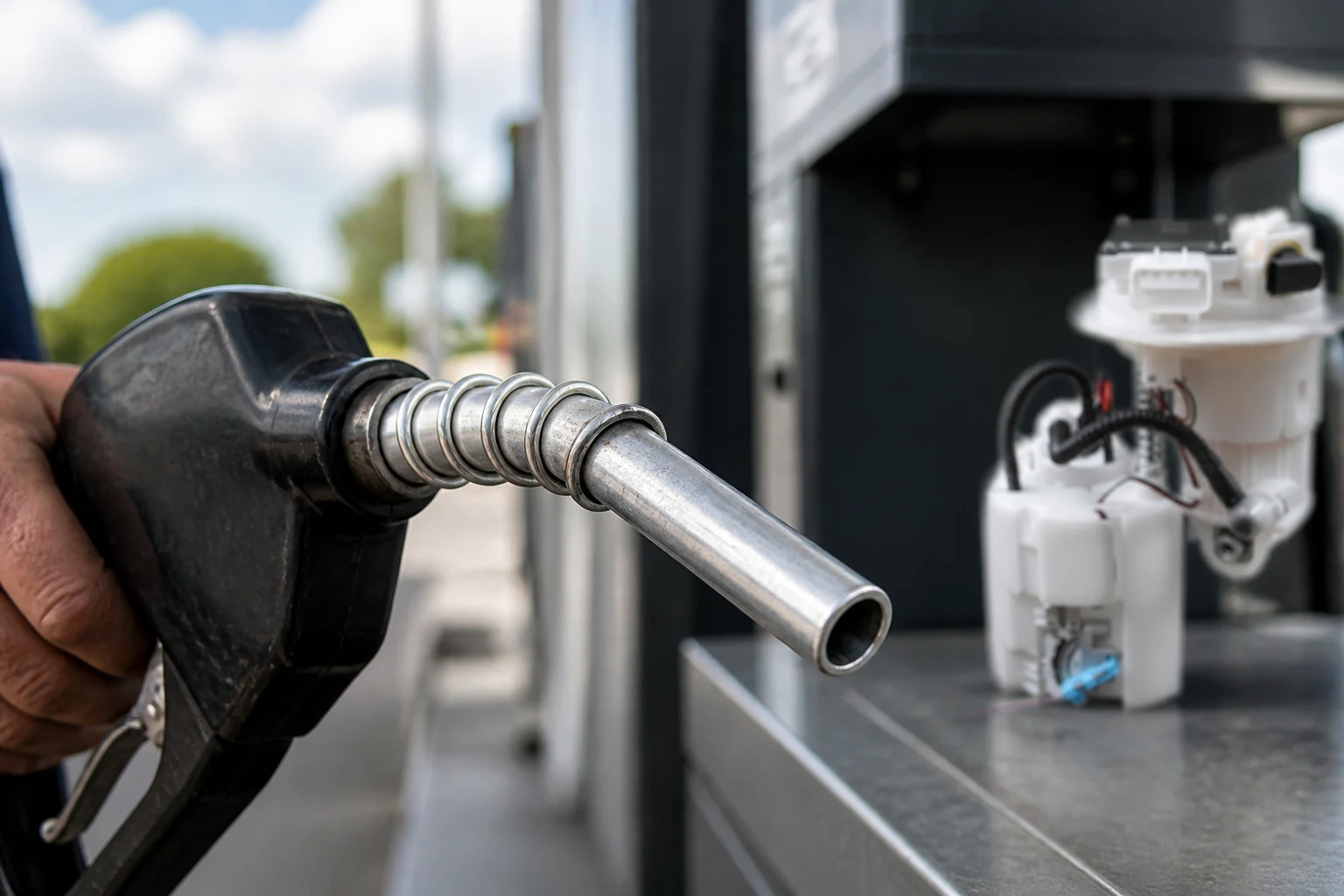

A diesel fuel pump nozzle (dispenser spout) is the metal tip on the forecourt fuel dispenser / pump island that mates with the vehicle filler. Spout outside diameter (OD) is how thick that tip is—the dimension that interacts with the filler neck / misfuel guard.
Do not confuse that tip with an engine injection nozzle (Size S / orifice) dimensional chart. Those injector-tip standards answer manufacturing interchange for injection hardware, not which pump-island spout to pull for a safe fill.
A high-pressure fuel pump (HPFP) sits downstream in common-rail / high-pressure systems. Wrong fuel can harm it later; this page still stays on spout selection, not symptom trees. For post-misfuel damage patterns, use the sibling diesel high-pressure fuel pump failure symptoms article.
Standard Spout Size Classes: Gasoline vs Auto Diesel vs High-Flow
Under common North American practice, unleaded tips are nominally ~13/16 in (20.6 mm) OD and diesel-class tips ~15/16 in (23.8 mm) or larger, with truck high-flow tips larger still; ISO bands add metric high-flow maxima.
Under SAE J285 practice, a gasoline / unleaded nozzle is nominally 20.6 mm (13/16 in) OD, while spouts for other fuels—including diesel—are nominally 23.8 mm (15/16 in) or larger. Unleaded tips may grow with tolerance or use toward 21.3 mm (0.84 in); other-fuel tips may decrease toward a 23.6 mm (0.93 in) floor.

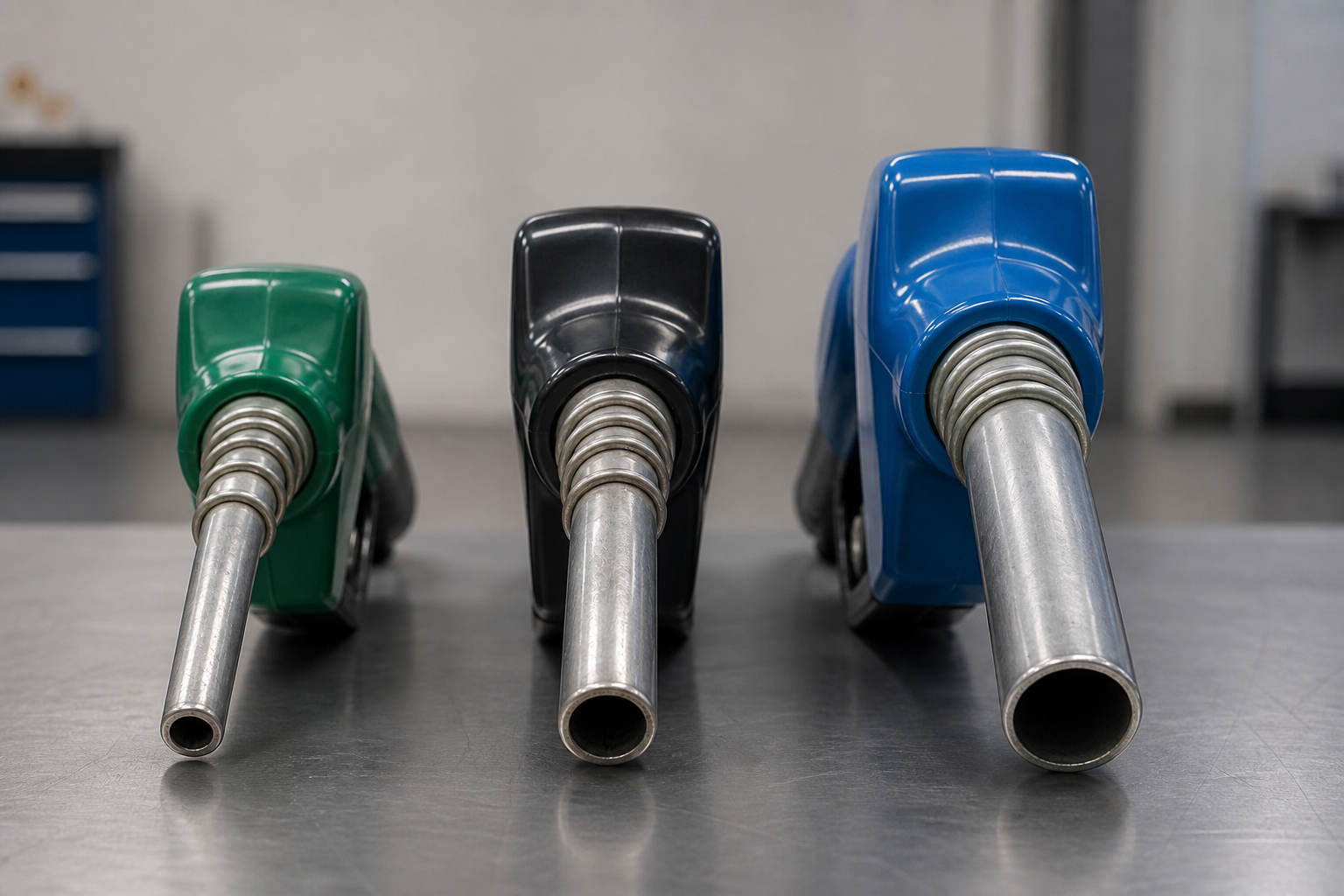

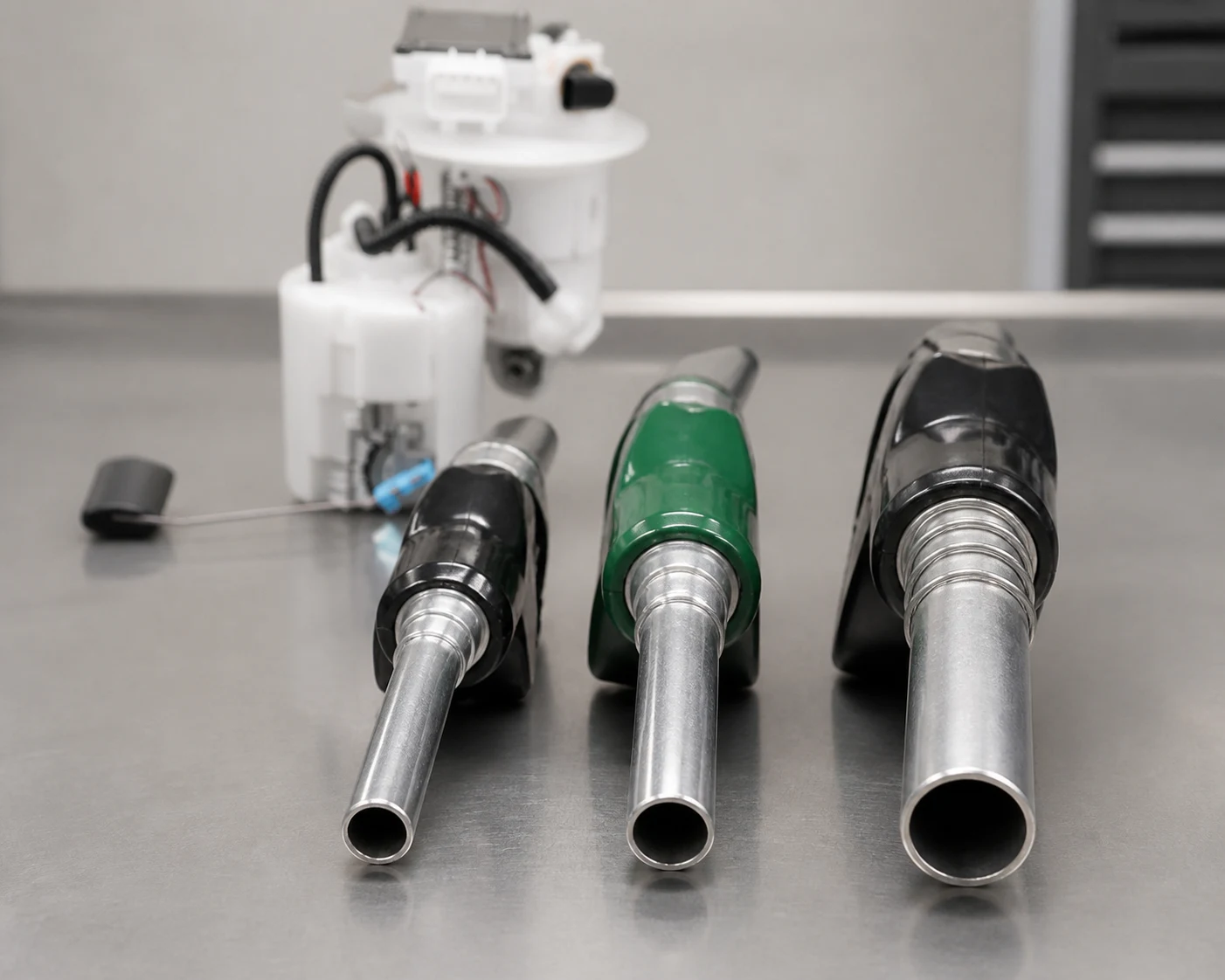

Owner and shop language commonly names three OD classes: 13/16 in for unleaded gas, 15/16 in for auto diesel, and about 1-1/8 in or larger for high-flow truck stops. Current SAE J285 framing also distinguishes spark-ignition versus compression-ignition dispenser spouts, not only an older “unleaded vs everything else” legal label set. This selection matrix draws on SAE J285 / ISO 9159 spout-dimension practice.
Lock the three OD classes in the matrix below before you write a fueling SOP.
| Spout class | Typical OD (NA practice) | Typical flow context | Selection note |
|---|---|---|---|
| Gasoline / unleaded | ~13/16 in (20.6 mm) nominal | Passenger gasoline island | Smaller tip; intended to stay locked out of many diesel misfuel guards |
| Auto diesel | ~15/16 in (23.8 mm) nominal or larger | Passenger diesel island (~8–10 GPM class) | Standard diesel fuel pump nozzles for light vehicles |
| Truck / high-flow diesel | Commonly ~1-1/8–1-3/16 in (~30–32 mm class) | Commercial high-flow (~30–40 GPM class) | Larger tip and higher flow; usually avoid on passenger fillers |
ISO 9159 sets metric outside-diameter bands for diesel/leaded gasoline dispenser spouts, with a larger maximum OD allowed on higher-flow diesel spouts. For the ≤50 L/min class, OD runs 23.6 mm min–25.5 mm max; for the 50–100 L/min diesel class, OD may reach 32 mm max.
Use the inch classes for North American counter talk and the ISO bands when a metric high-flow max matters. Spout size does not redefine which ULSD / diesel fuel grade the hose dispenses.
How Misfuel Guards and Filler Necks Use Nozzle OD
Many diesel misfuel guards stay locked for gasoline-size tips (~13/16 in) and unlock for diesel-class tips (~15/16 in); a flap that will not open may mean the wrong tip is on the pump.

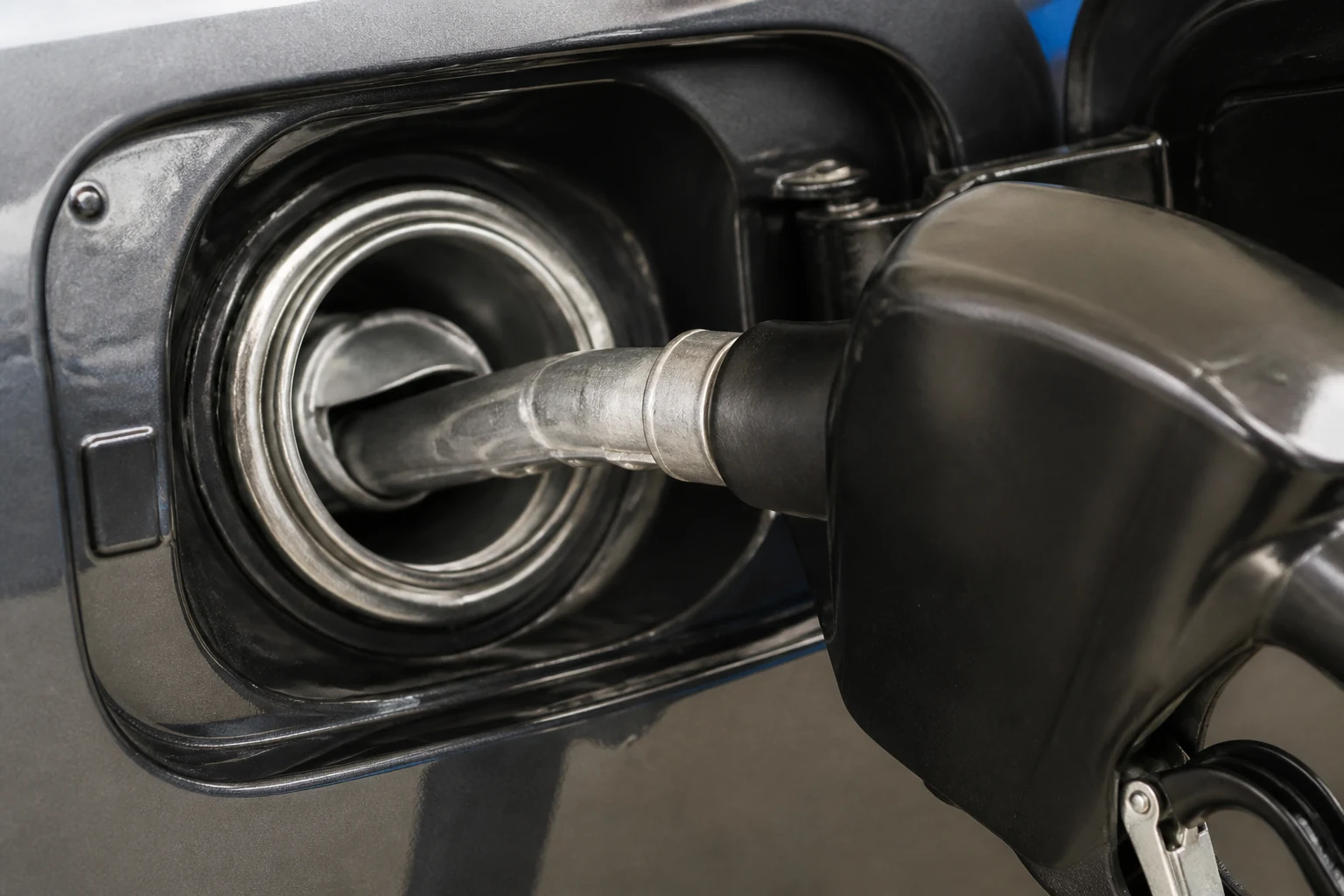

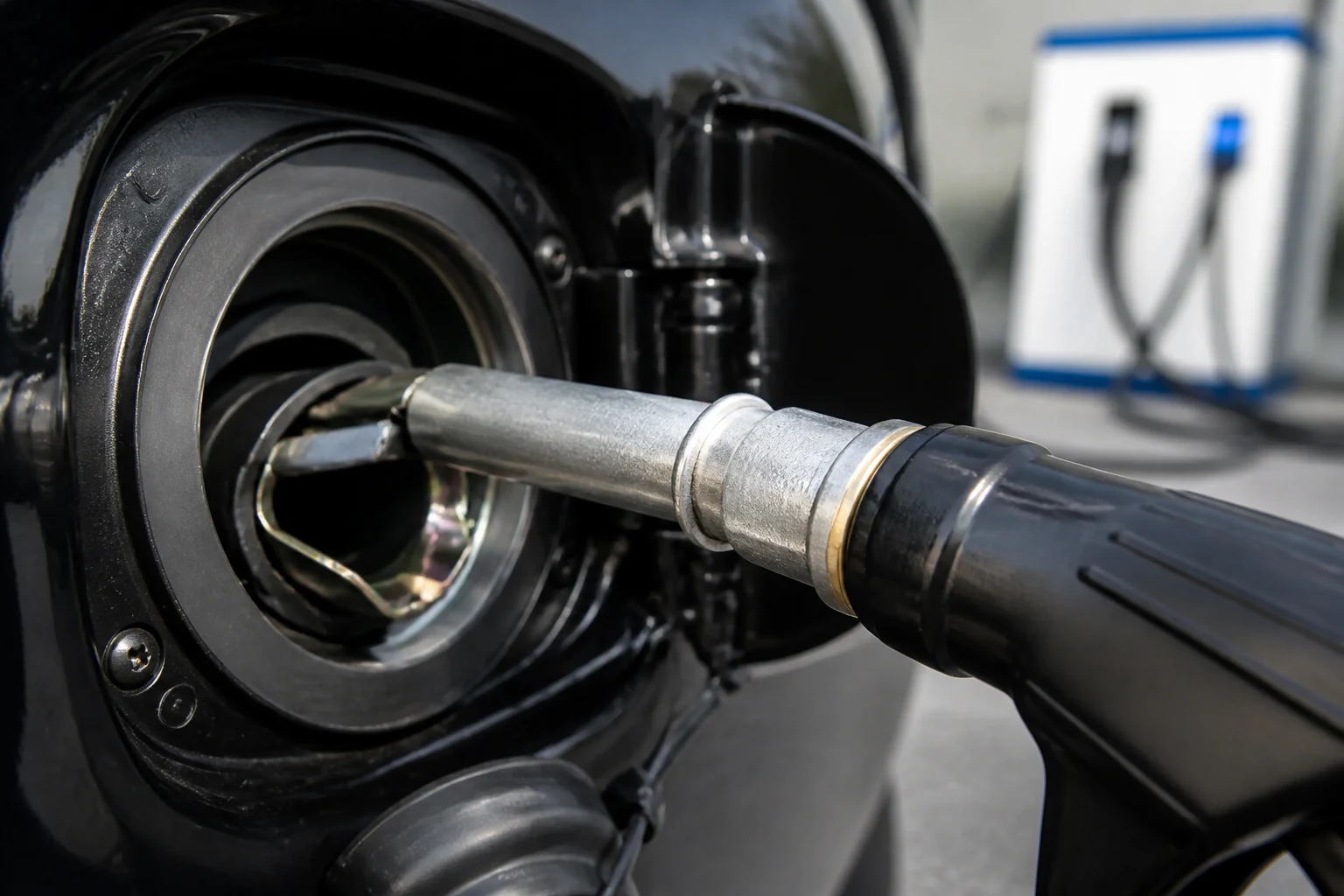

A misfuel guard / filler restrictor is the vehicle-side flap or gate that unlocks for diesel-class OD. Many diesel misfuel guards unlock only when a larger diesel-class spout (~15/16 in / 23.8 mm) is inserted; a gasoline-size spout (~13/16 in / 20.6 mm) is intended to stay locked out.
When a diesel flap will not flip open, check tip OD before you blame the tank. Diesel owners report gasoline-size tips incorrectly installed on diesel-labeled pumps—the small diameter keeps the guard closed until the driver moves to another island.
Use the unlock matrix below when a diesel flap stays closed at the island.
| Tip OD class | Typical guard response on diesel filler | Counter action |
|---|---|---|
| ~13/16 in (20.6 mm) gasoline/unleaded | Guard often stays locked | Measure tip; try another diesel pump; confirm printed diesel label |
| ~15/16 in (23.8 mm) auto diesel | Guard intended to unlock | Insert squarely; if still locked, inspect worn tip OD or insert angle |
| Truck high-flow (~1-1/8 in+) | May not fit passenger neck | Move to auto-island diesel tip; do not force |
Worn or out-of-spec station nozzles can also fail to unlock a healthy guard. A locked flap is often equipment mismatch, not an automatic tank replacement ticket.
From the field: Sprinter owners describe the filler flap refusing to open until they leave a diesel pump fitted with a small unleaded-size tip (about 13/16 in OD)—another station with a diesel-class spout unlocked the same guard.

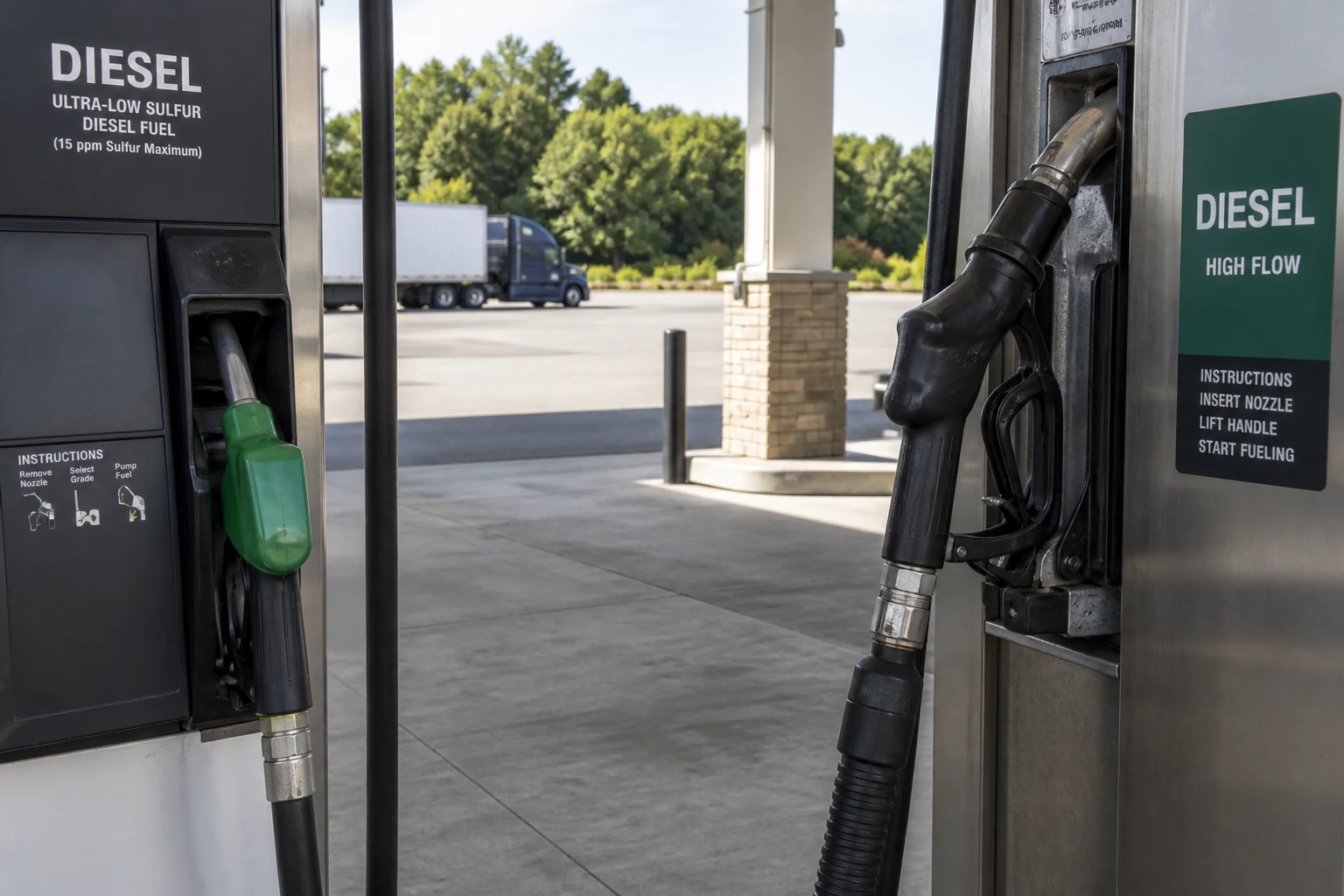

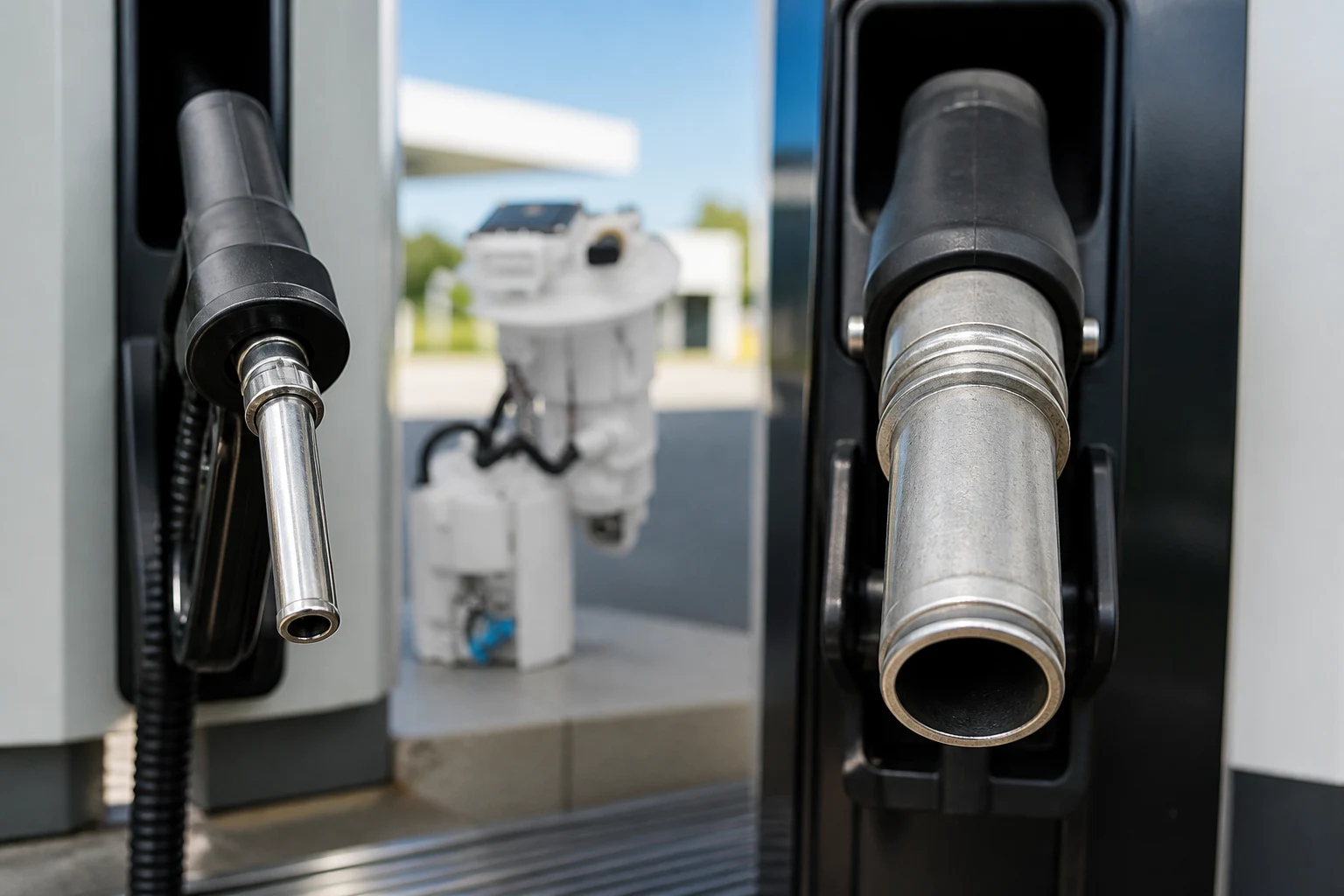

Auto Island vs Truck Lane: Flow Rate and Fit
Match passenger diesels to auto-island flow/OD class; truck high-flow tips often will not fit or may splash/click off—and spout size does not change ULSD chemistry.
Auto diesel vs truck high-flow nozzle differences are mainly hardware: tip OD and delivered flow, not a different diesel molecule defined by the spout. Passenger auto diesel flow is typically ~8–10 GPM with roughly auto-diesel OD; commercial high-flow often sits in a ~30–40 GPM class with larger spouts.
Highway diesel fuel quality is regulated separately from spout size. EPA diesel fuel standards cover sulfur and related highway diesel programs; the tip OD does not change which ULSD grade leaves the hose.
If a truck-stop tip will not seat in a passenger filler, stop forcing it. Oversized tips can splash back or click off before a clean fill finishes. Keep van and light-truck SOP language on auto-island diesel tips unless the vehicle’s filler is built for commercial high-flow.
Selection Checklist: Labels Over Color, Then Tip Size
Confirm printed grade labels first, treat handle color as unreliable, then confirm diesel-class spout OD—and remember larger diesel tips are common but not universal.
Larger diesel dispenser nozzles are a common misfueling safeguard, but stations do not always install the larger tip—so labels and grade confirmation still matter. Handle color is not a reliable global diesel identifier because color coding differs by country and retailer.
Work the fill in this order:
- Read the printed diesel / ULSD grade label on the dispenser face.
- Ignore handle paint as sole proof of fuel type.
- Confirm the tip looks like auto-diesel class (~15/16 in), not gasoline class (~13/16 in), before you commit the fill.
- If the misfuel guard stays closed, treat the pump equipment as suspect and change islands.
- Keep truck high-flow tips off passenger necks unless the filler is designed for them.
Tip: Prefer printed grade labels over handle color—color schemes vary by retailer and country, so paint alone is not enough to identify diesel.
Why Wrong Fuel Threatens High-Pressure Pumps (and When to Read Symptoms Separately)
Gasoline in a diesel system can strip lubricity and damage high-pressure pumping hardware; use the sibling symptoms article for failure patterns, not this size guide.
Misfueling (gas-into-diesel) remains the higher-risk direction because a gasoline nozzle often fits a diesel filler even when the reverse path is blocked. Gasoline can strip diesel lubricity and leave high-pressure pumps and injectors exposed to wear and metal debris.
Spout sizing reduces wrong-fuel entry; it does not repair contamination after a bad fill. Once gasoline is in a diesel tank, stop driving and follow shop recovery procedure before you quote pumps.
For noise, pressure loss, or metal-in-fuel patterns after a misfuel, open the diesel high-pressure fuel pump failure symptoms counter guide. Keep this page on nozzle-size selection so the two intents stay separate.
After Fuel Integrity: Kangsong Fuel Pump Assemblies (Scoped)
Kangsong lists electric fuel pump assemblies—not dispenser nozzles; browse the products hub after confirming fuel type and fuel-path integrity, and use vehicle-scoped SKUs such as verified Hyundai high-pressure pump fitment only when OE/years match.

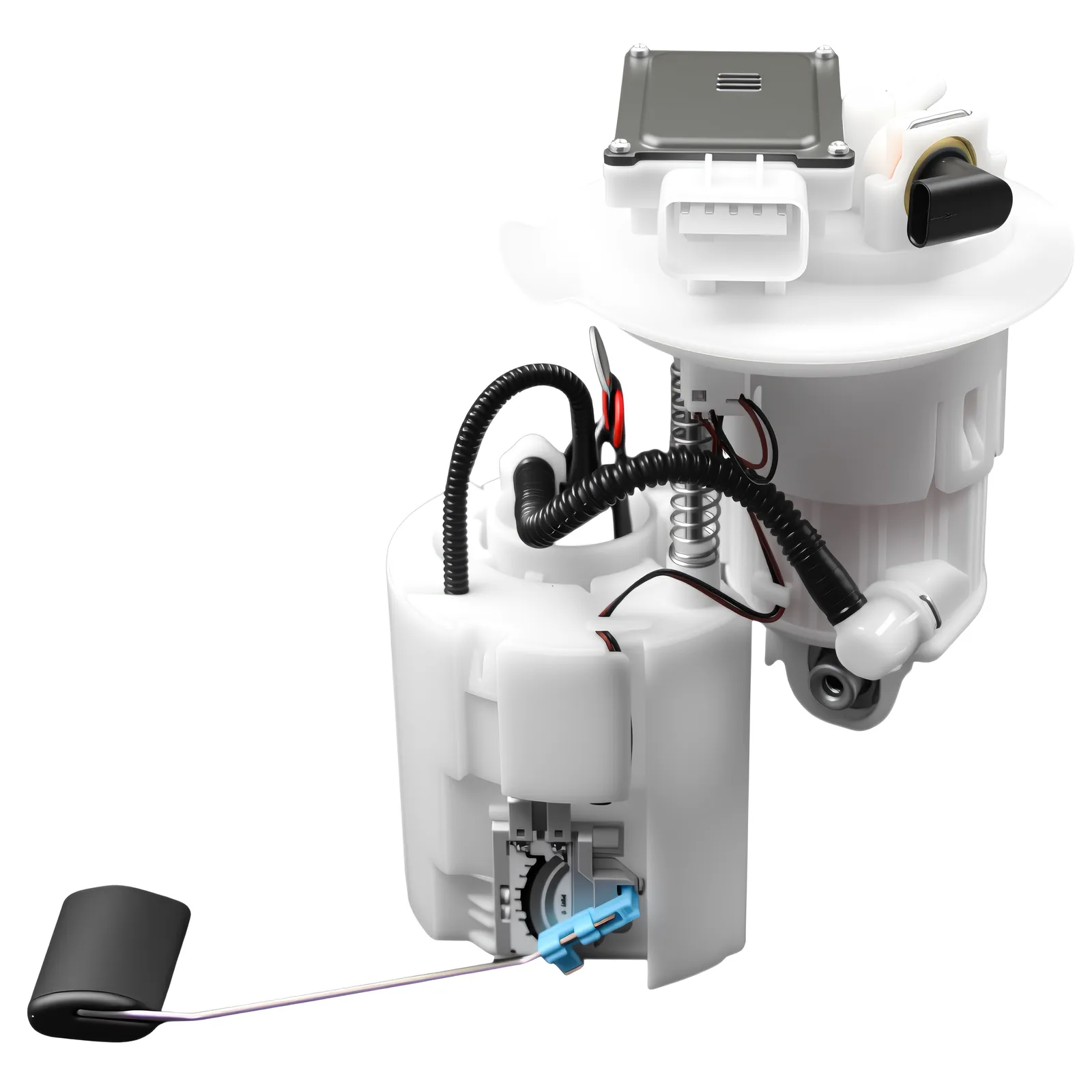

An electric fuel pump assembly (Kangsong) is the in-tank / EFI module that pressurizes fuel after the correct fill is already in the tank. Browse Kangsong fuel pump assemblies after confirming fuel type and fuel-system integrity.
